An unexpected fly-by. Captured by MOBOTIX.🐦

A Kutilang steals the spotlight in Jakarta, Indonesia — captured by a MOBOTIX S ONE Dual equipped with 95°(left) and 120° (right) sensor modules, recording in Full HD (up to 4K@30 fps possible).

Sometimes, the most memorable visitor arrives on wings.

S ONE Dual

Two 4K sensor modules. One compact system. AI-based video analysis on both channels simultaneously.

The MOBOTIX S ONE Dual is a modular 2×4K recessed camera designed for demanding, covert installations. It combines two freely positionable UHD sensor modules with a rugged camera body that can be discreetly integrated—developed for industrial applications, vehicles, access control systems, and security-critical environments.

Made in Germany – Developed for long-term security

  • Developed and manufactured at the company headquarters in Langmeil, Germany
  • High cybersecurity standards (MOBOTIX Cactus Concept)
  • NDAA compliant
  • 5-year factory warranty
  • Free lifetime firmware updates


MOBOTIX S ONE Dual: One of the most robust high-end flush-mount cameras in the world.

Why S ONE Dual? Two perspectives. One platform. Lower total cost of ownership.

The MOBOTIX S ONE Dual consistently applies the proven dual-camera principle of its predecessor, the MOBOTIX S16 DualFlex, to the latest, more powerful, and AI-enabled ONE system platform. Two sensor modules (optical and/or thermal) capture different areas simultaneously—independently of one another—at up to 30 frames per second each. Whether it’s two rooms, indoors and outdoors, across a corner, or two lanes of traffic: one camera. One IP address. Less hardware. Less complexity. Lower licensing costs in the VMS.

Your benefits:

  • 2× 4K UHD (3840 × 2160, Hemispheric: 2160 × 2160) with up to 2× 30 fps
  • 120 dB Wide Dynamic Range
  • Automatic day/night switching per sensor
  • Optical sensor module field of view from 15° (telephoto) to 360° (hemispheric)
  • Two thermal imaging radiometry modules (VGA, 30 mk, 30 fps): 95° x 76° and 50° x 40°
  • Two sensor channels under a single IP address
S ONE Dual fully equipped
S ONE Dual Applications

Suitable for industrial and outdoor use

The S ONE Dual meets the highest requirements for industrial video surveillance:

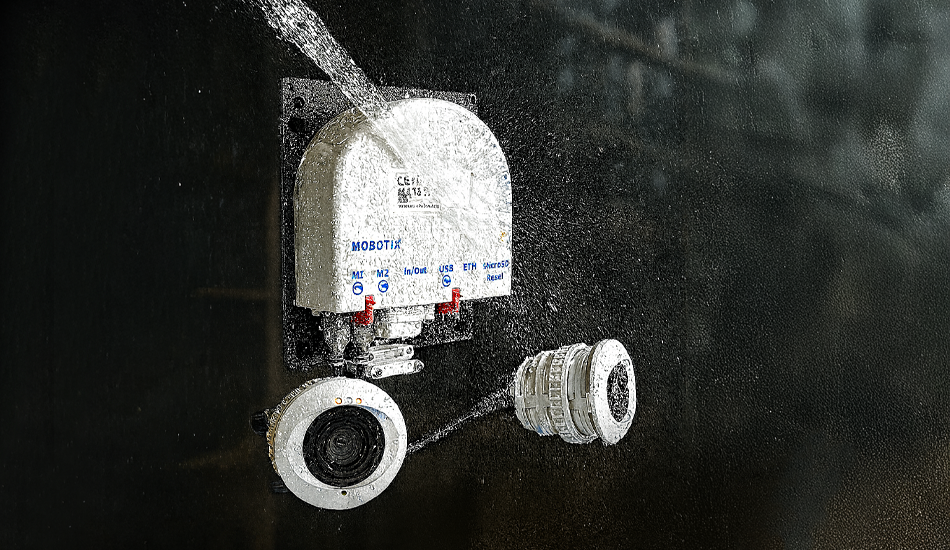

  • IP66 protection class
  • NEMA 4X corrosion resistance
  • IK10 vandalism protection (sensor modules)
  • –40 °C to +65 °C (–40 °F to +149 °F) operating temperature
  • MTBF > 100,000 hours


An integrated tamper and vibration sensor further increases system security. Long service life means lower replacement and service costs – a key factor in TCO considerations.

S ONE Dual mobile applications

Energy-efficient PoE camera with minimal power consumption

Despite its powerful dual processor, the camera remains in PoE Class 3 even at a maximum frame rate of 2x30 frames/s and can be powered directly via the network cable.

  • Typically only approx. 9 W power consumption
  • Maximum 12.95 W
  • Optional 12–24 V DC
  • Weatherproof accessory boxes for network connection, external power supply, and surge protection


Especially in larger installations, the low energy consumption reduces ongoing operating costs over many years.

Integrated AI Video Analytics without license fees

The S ONE Dual comes with the integrated MOBOTIX ActivitySensor ONE as standard.

Both sensor channels analyze independently of each other:

  • People
  • Vehicles (cars, trucks, buses, motorcycles, bicycles)
  • Directions of movement
  • Length of stay

The entire analysis is performed directly in the camera.



S ONE Dual Demo Clips

Economic advantages:

  • No server-based analysis
  • No channel-dependent AI licenses
  • No follow-up costs for system expansion
  • No dependence on cloud systems

This significantly reduces the total cost of ownership, especially for projects with many cameras.



S ONE Dual Demo Clips

S ONE Dual Multi Applications
S ONE Dual Inconspicuous Installation

Designed for demanding installation scenarios

The camera body is concealed behind panels, ceilings, or inside machines. Only the sensor modules remain visible.

Typical applications:

  • Machine monitoring
  • Manufacturing cells
  • Buses and trains
  • Access and barrier systems
  • Logistics centers
  • Critical infrastructure
S ONE Dual Scheme Flexibility

Well-thought-out system concept

With SingleMount, DualMount, PTMount, and On-Wall Kit, flexible mounting options are available for almost any scenario.



At the same time, existing S15/S16 mounts can continue to be used in many cases.

This reduces project effort and downtime.



Up to 2 TB of internal DVR (microSD, 64 GB as standard) allows recording without an external server.

S ONE Dual BlockFlexMount

BlockFlexMount – Special sensor modules for special installation solutions

The S ONE Dual goes one step further than classic installation solutions. In addition to the standard sensor modules, all 4K Day & Night variants are also available as BlockFlexMount versions. Includes integrated microphone, ambient light sensor, IR cut filter (Day & Night), and RGB status LED.



The robust aluminum housing with multiple threaded holes (width and height: 40 mm, depth including lens: 54.5 mm) enables direct and clean integration into machines, housings, vehicles, or customer-specific designs—without additional brackets or special metal constructions. And without additional design and installation effort.

S ONE Dual BE THE ONE

The camera supports:

  • ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
  • H.264, H.265, MxPEG+, MJPEG
  • Multistreaming
  • HTTPS / TLS 1.3
  • MQTT, SNMP, VLAN, VPN

Integration in:

  • MxManagementCenter
  • MOBOTIX HUB, MOBOTIX Cloud, MOBOTIX LIVE App
  • ONVIF-based third-party VMS (S ONE Dual has only one IP address for reduced licensing and integration costs)

Total Cost of Ownership at a Glance

The S ONE Dual reduces costs over the entire life cycle

Planning

  • Fewer components
  • Fewer network resources

Installation

  • Shorter installation times
  • Less cabling
  • Fewer IP addresses

Operation

  • License-free ActivitySensor ONE app
  • Low energy consumption
  • Decentralized edge architecture

Maintenance

  • High MTBF
  • Robust design
  • Fewer devices in the field

Typical areas of application – where the S ONE Dual shows its strengths

The S ONE Dual is optimized for applications where overview, space requirements, robustness, and reliability are crucial. It is the ideal solution for scenarios that require two reliable perspectives, intelligent object detection, and extreme environmental resistance – while also offering easy integration and low operating costs.

  • Industry and mechanical engineering: Manufacturing cells, robotics, hard-to-reach areas, process monitoring
  • Logistics and flow of goods: Transshipment zones, storage areas, conveyor technology, yard management
  • Vehicles (buses, trains, special vehicles): Dual field of vision monitoring, passenger compartment & door area, mobile security applications
  • Access control: Security gates, barriers, turnstiles, doors, and access roads
  • Critical infrastructure: Energy supply, research facilities, sensitive factory areas
  • Other applications: Parking garages, cash register systems and machines, amusement parks, ski resorts, mountain railways, gondolas
Industry_930x550
Industry & Production
mx_traffic_verkehrsfluss_930x550
Traffic and Mobility
MOBOTIX Access Control
Access Control
Bollore Logistics AUS
Logistics And Shipping
Energy, Utilities & Mining

Complete system solution from a single source – camera, modules, and accessories

  • Camera module (body): Mx-ONE-S1A-D (includes 64 GB microSD)
  • Optical Sensor Modules, Standard & BlockFlexMount (4K Day & Night with IR-cut filter, incl. microphone, status LED, ambient light sensor): 180°x180°, 120°x60°, 95°x50°, 60°x33°, 45°x25°, 30°x17°, 15°x8.5°
  • Thermal sensor modules (VGA, 30 mK, 30 fps, thermal radiometry): 95°x76°, 50°x40°
  • Sensor cables (1, 2, and 5 m lengths): Mx-ONE-CBL-S0x-AN
  • Mounting systems: SingleMount, DualMount, PTMount, On-Wall Kit for PTMount
  • Additional accessories: Overvoltage Protection Box (RJ45/LSA), NPAA Box, GPS-Box, 4IO Box, NPA-Box, battery cable (power supply via 12–24 V DC), LAN cable 1 to 10 m (weatherproof)



MOBOTIX Store





Direct replacement for MOBOTIX S15/S16

Simple replacement significantly reduces installation effort, downtime and costs.

  • Camera body: Aluminum mounting plate with identical pre-drilled holes as the S15/S16, no mechanical conversion required
  • Sensor modules: Identical size of sensor module openings and threads allows continued use of existing openings (with a diameter of 43 mm).
  • Sensor module mounts: Can continue to be used, with the exception of PTMounts from the first series
  • Infrastructure: PoE supply according to IEEE 802.3af, existing cabling and switches remain unchanged



More performance, more possibilities: The S ONE Dual offers significantly higher system performance than the previous S15/S16 and opens up new application scenarios through AI-based Video Analytics, automatic day/night switching per sensor, and improved image quality through 4K and wide dynamic range.
